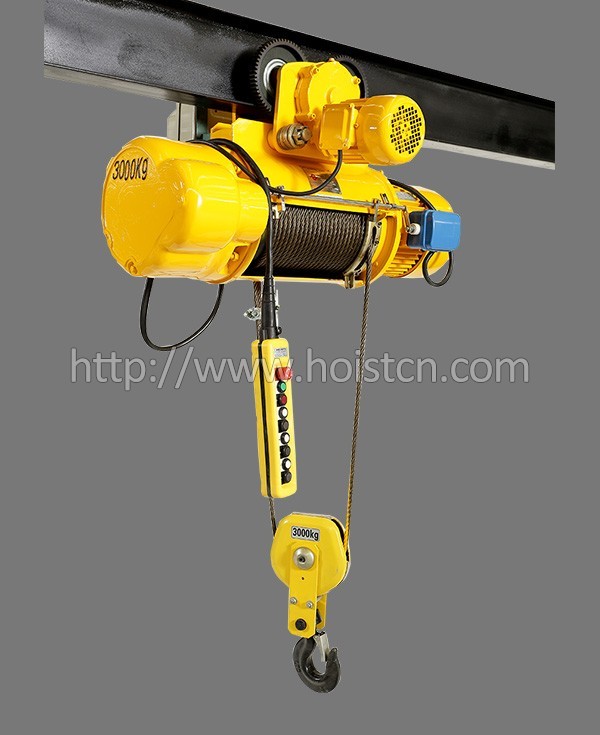

3T CD1 Electric wire rope hoist

Details Show






Details

CD1 electric wire rope hoist are kinds of light small its heavy equipment, has the structure to be compact, the weight is light, the volume is small, the spare part versatility is strong, operation simple and so on merits. The reduction gear uses the hard tooth face rotation design, the life is long, the mechanical efficiency is high. The electrical machinery uses the cone-shape rotor to apply the brake electrically operated several, has the high and low bidirectional security stop block.

>The lifting motor of our electric wire rope hoist is Nanjing special motor ,the best quality motor from China.

> For rope guide, our electric hoist is not the original one, the original one is easy to be broken; the new type is with pressure lever and pressure wheel, the lever could press wire rope, and the wheel only allow one wire rope go out, it would avoid the wire rope goes wrong!

> The hook of our electric wire rope hoist is special, it is very beautiful, the quality is also very good.

> The gear of gear box is the best quality gear in China, the material of first axle and first gear is 40Cr, the other axles and gears are with high frequency quenching, it guarantee the gears wearing resistance.

> The shaft joint is large open shaft, there is the spline in it, it is better buffered the force when the motor start and stop, it make the axle and jackshaft more resistant. It reduce wear of central axle and jackshaft.

> The gear box of our electric wire rope hoist cover adopted the casing of automotive technology, makes paint more bright and delicate.

> Our electric wire rope hoist is with load limiter.

Technical Data

Model

CD1 0.5T

CD1 1T

CD1 2T

CD1 3T

CD1 5T

CD1 10T

CD1 16T

CD1 20T

CD1 25T

CD1 32T

Capacity (t)

0.5

1

2

3

5

10

16

20

25

32

Standard lifting height (m)

6-12

6-30

6-30

6-30

6-30

9-30

9-18

9-18

9-24

9-24

Lifting speed  (m/min)

8

8

8

8

8

7

3.5

3.5

2.4

2.4

Running speed (m/min)

20

20

20

20

20

20

20

20

20

-

Wire rope type

D-6X37+1

D-6X37+1

D-6X37+1

D-6X37+1

D-6X37+1

D-6X37+1

D-6X37+1

D-6X37+1

D-6X37+1

D-6X19+1

I-beam track type

16-28b

16-28b

20a-32c

20a-32c

25a-63c

25a-63c

45a-63c

50a-63c

50a-63c

50a-63c

Min. radius of curve (m)

1.5

1.5-4

2-4

2-4

2.5-5

2.5-9

3-4.6

3-4.6

3-4.6



Power supply

220V-440V,50/60HZ,3P

Working duty

Mid M3

Mid M3

Mid M3

Mid M3

Mid M3

Mid M3

Mid M2

Mid M2

Light M6

Light M3
