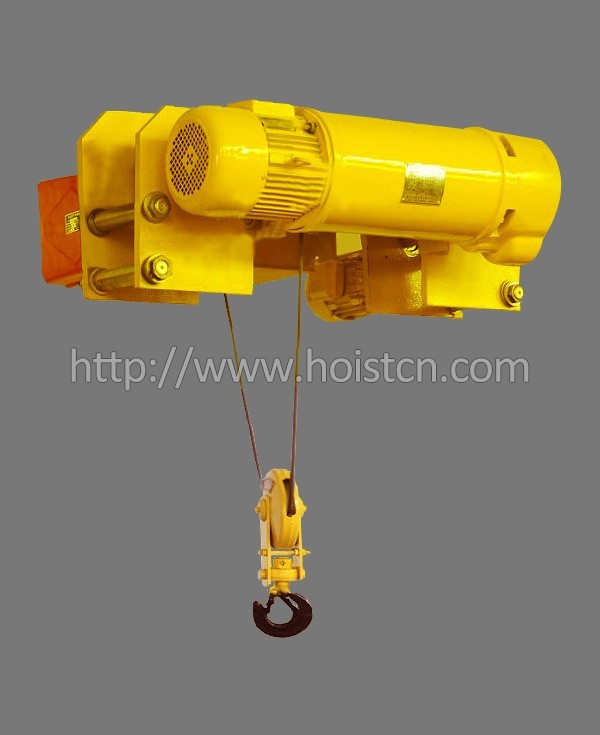

CDL/MDL Low headroom electric wire rope hoist

Model

CDL/ MDL

Capacity

tons

0.5

1

2

3

5

10

16

Hoisting height

m

6,9,12

6,9,12,18,24,30

9,12,18,24,30

Hoisting speed

m/min

8(0.8/8)

8(0.8/8)

7(0.7/7)

3.5(0.35/3.5)

Travel speed

m/min

20/30

20/30

20/30

20/30

20/30

20/30

18

Wire rope

Dia.(mm)

4.8

7.4

11

13

15

15

17.5

Spec.

6x37+FC

6x37+FC

6x37+FC

6x37+FC

Hoisting motor

Type

ZD121-4

ZD122-4

ZD131-4

ZD132-4

ZD141-4

ZD151-4

ZD151-4

ZDS1 0.2/0.8

ZDS1 0.2/1.5

ZDS1 0.4/3.0

ZDS1 0.4/4.5

ZDS1 0.8/7.5

ZDS1 1.5/13

ZDS1 1.5/13

Power(kW)

0.8(0.2/0.8)

1.5(0.2/1.5)

3.0(0.4/3.0)

4.5(0.4/4.5)

7.5(0.8/7.5)

13(1.5/13)

13(1.5/13)

Rotation speed(r/min)

1380

1380

1380

1380

1400

1400

1400

Current (A)

2.2(0.72/2.4)

4.3(0.72/4.3)

7.6(1.25/7.6)

11(2.4/11)

18(2.4/18)

30(5.2/30)

30(5.2/30)

Travel motor

Type

ZDY111-4

ZDY111-4

ZDY112-4

ZDY112-4

ZDY121-4

ZDY121-4

ZDY121-4

Power(kW)

0.2

0.2

0.4

0.4

0.8

0.8x2

0.8x2

Rotation speed(r/min)

1380

1380

1380

1380

1380

1380

1380

Current(A)

0.72

0.72

1.25

1.25

2.4

2.4

2.4

Power

AC 380V,50HZ,3P
